- Brand Name : Debra
- Hign-concerned Chemical : None
- Origin : Mainland China
- Model Number : ER-102

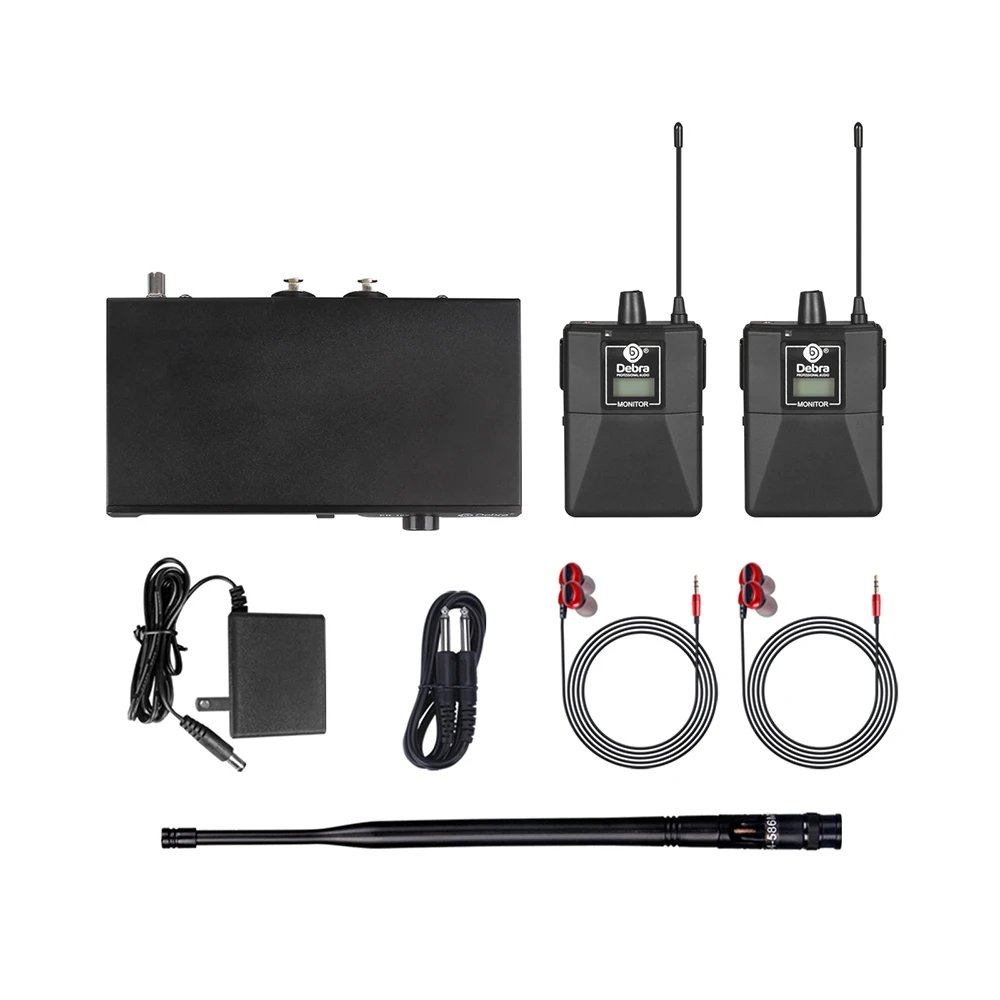

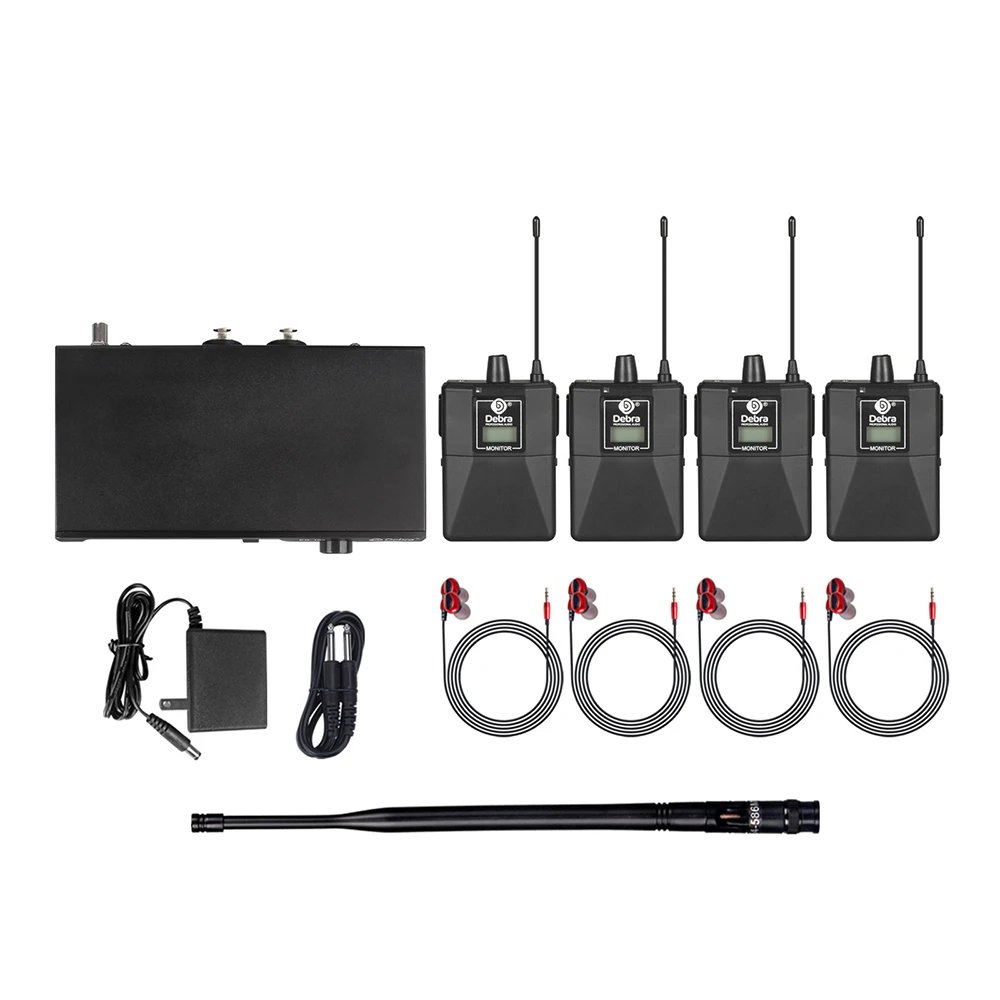

- Bundle : Bundle 1
- Type : In-Ear Monitoring
- Plug Type : US PLUG
- Certification : CE
- Certification : FCC
- Certification : RoHS
- Frequency Range : 530Mhz-580MHz

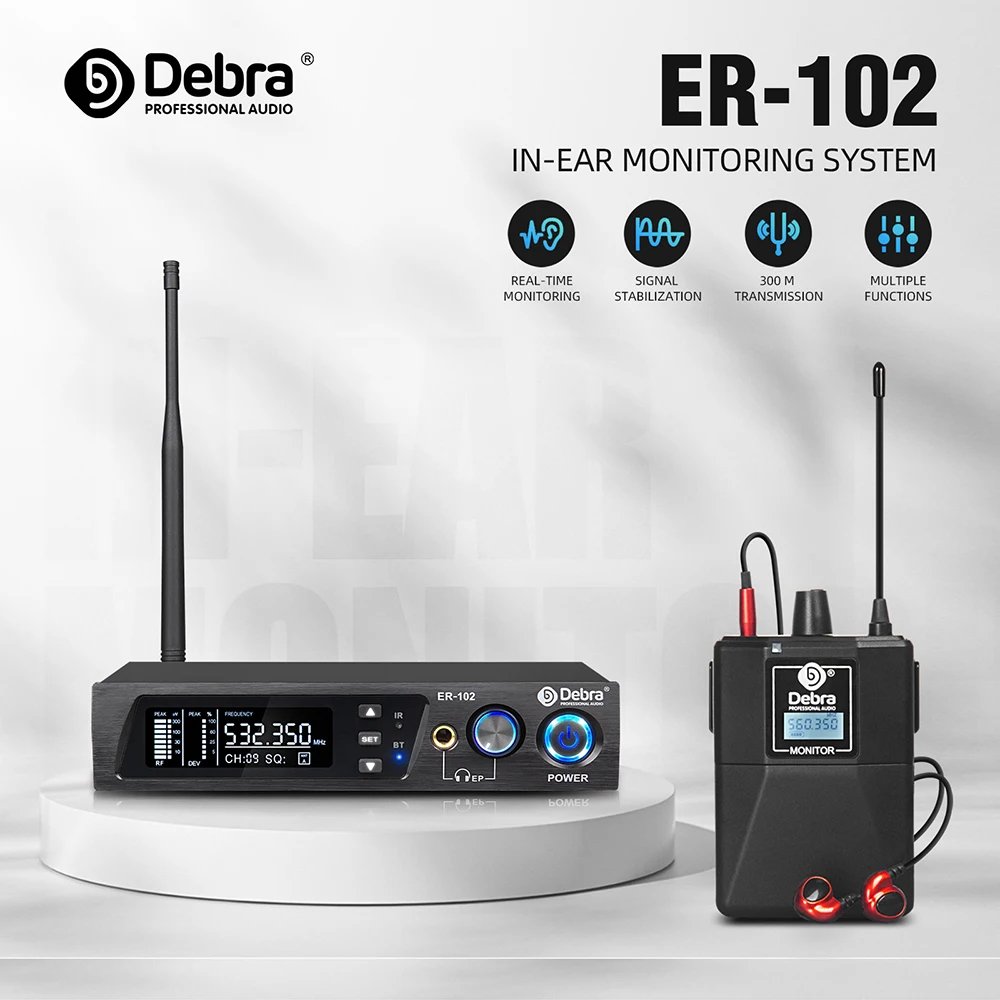

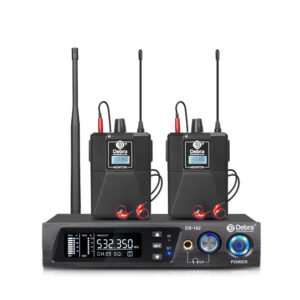

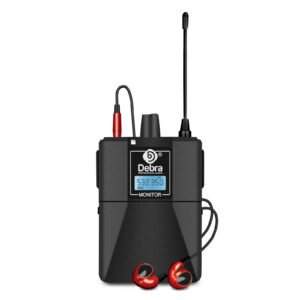

ER-102UHF Professional Wireless In-Ear Monitor System

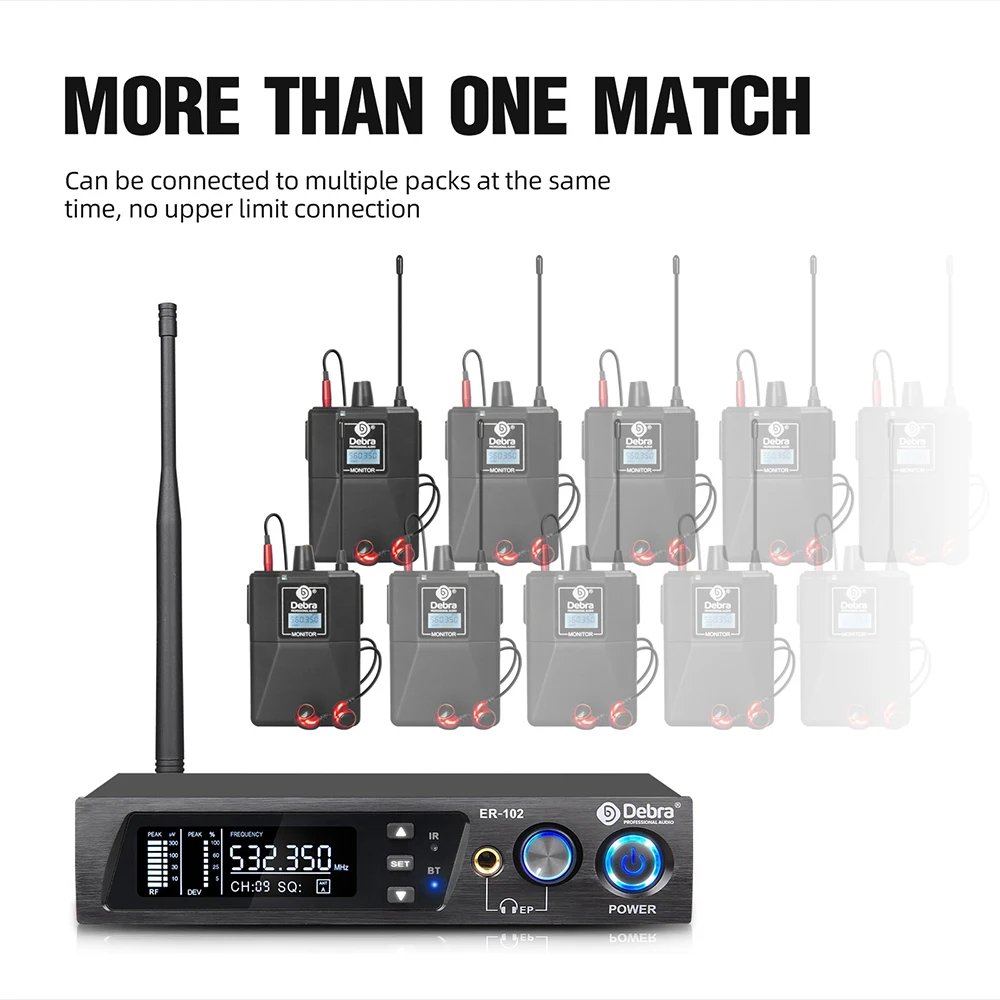

Recommend the latest ER-102 professional wireless monitoring system, it uses UHF signal transmission, has Bluetooth function, can connect multiple bodypack receivers for wireless monitoring, with high-fidelity HIFI headphones, used for recording studios, stage performances, classroom teaching, conferences speech, etc.
Receiver Specifications
Frequency range:530-580MHz

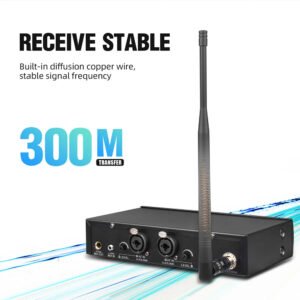

Signal transmission range: 300m in an open environment
Receiving mode: Super heterodyne double-conversion
Frequency vibration: PLL lock loop
Sensitivity: -93 dBm
Audio output: XLR balance output:0~500mV
/ ф6.35 unbalance output:0~500 mV
Rated power consumption:3W
Transmitter Specifications
Modulation Method:π/4-DQPSK

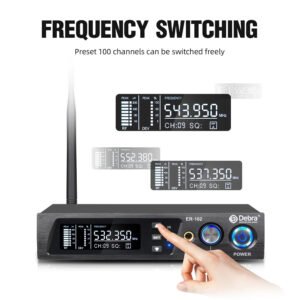

Frequency Range:530-580MHz,1x100CHs
Please refer to the actual product for the frequency of some orders
Transmission power: 10mW
Sampling Ratio:48KHz
Transmission Rate:204.8Kbps
Dynamic Range:＞90dB
Total Harmonic Distortion:＜0.1%
Delay Time of Audio Transmission:＜3ms
S/N Ratio:＞96dB
Frequency Response:30～20Khz
RX Sensitivity:＜-94dBm
●The transmitter and antenna should kept in the relative position of accessibility of the straight line.
●Don't put the receiver close to the radio wave emission source, with magnetic objects or most digital devicessuch as the CD player, computer, speaker, wifi etc .
●Try to place the receiver in height of 1.5 meters from the ground and the position of a distance of 1 meter away from the wall.
